Flow Diagramms for the Object Server

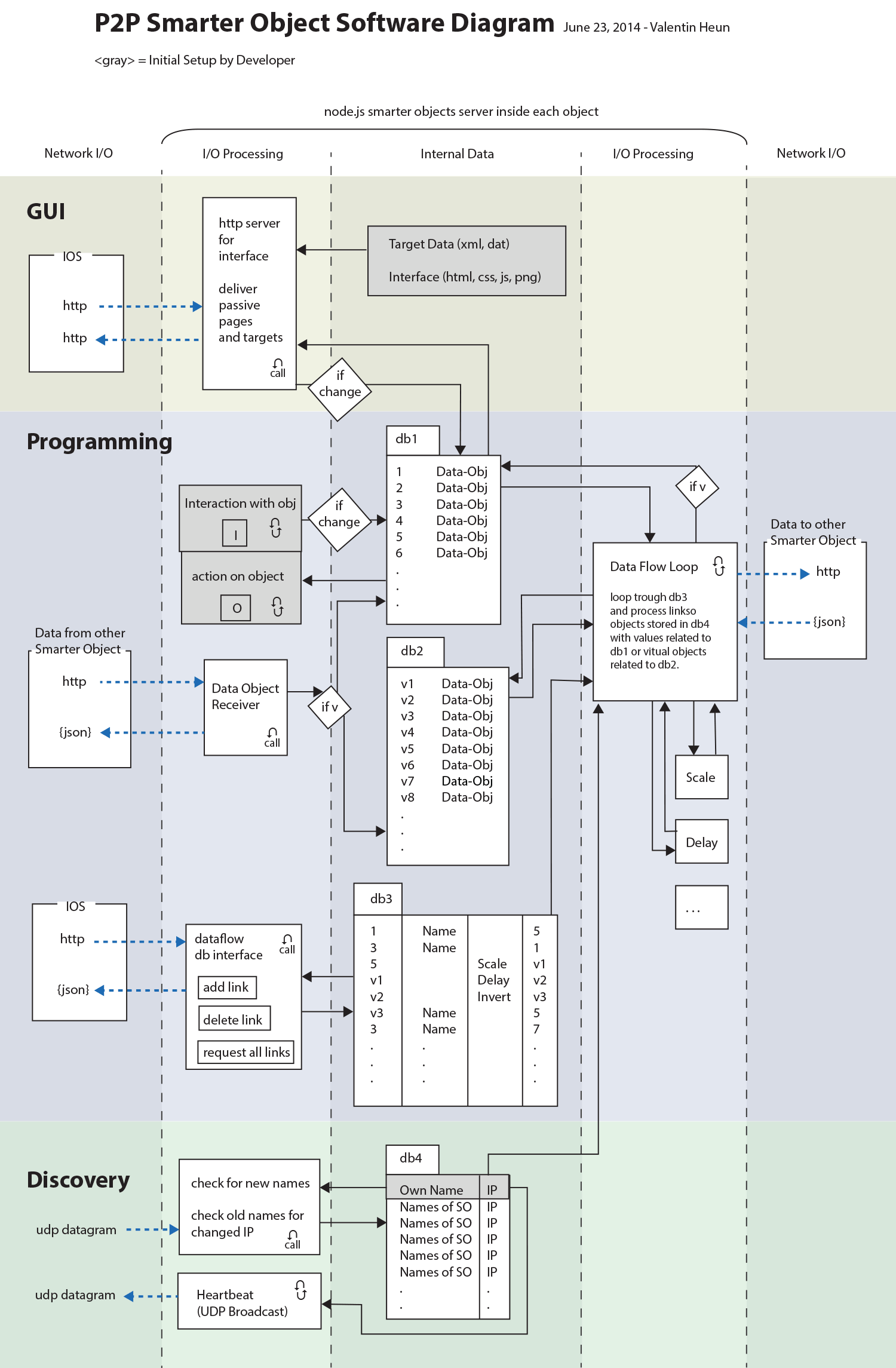

I have created two diagrams last year to sketch out how the server architecture works.

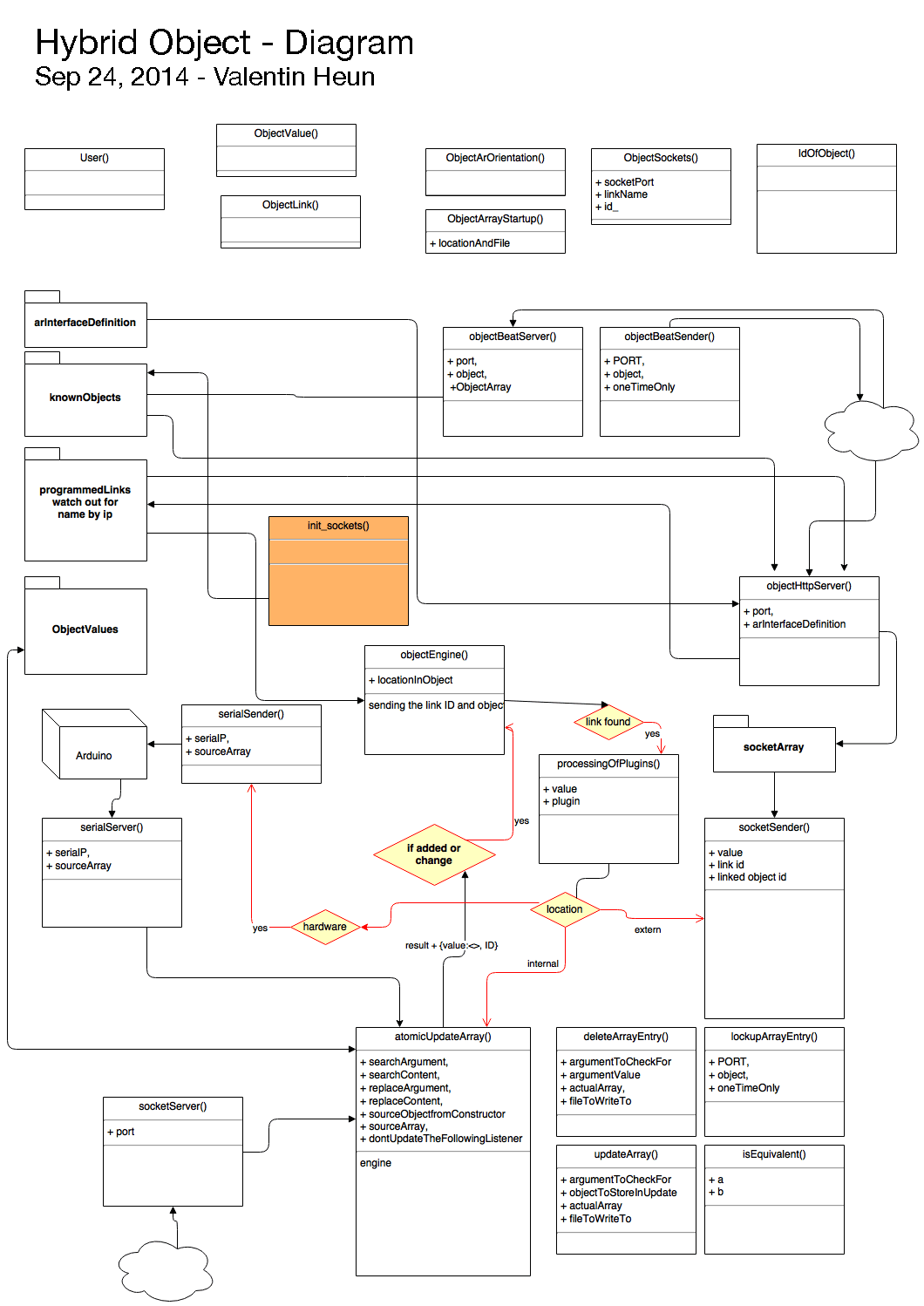

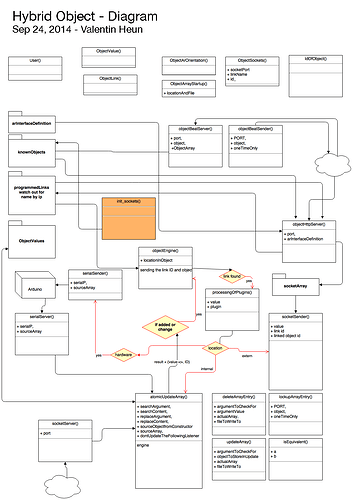

They are far away from being accurate at this point! But they show a little bit how the architecture evolved. The Hybrid Object Diagram is closer to the final version. Later this year I will make a more accurate map.

System-for-HO-2.png1060×1498 49.8 KB

smarterobjects_flow2.png1500×2290 89.5 KB
