Targets other than image targets

I noticed, that you can only add image targets and not cylindrical ones. Is there a reason for that?
Additionally this part in server.js 1 doesn’t make sense to me:

 var documentcreate = '<?xml version="1.0" encoding="UTF-8"?>\n' +
                                '<ARConfig xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">\n' +
                                '   <Tracking>\n' +
                                '   <ImageTarget name="' + objectName + '" size="300.000000 300.000000" />\n' +
                                '   </Tracking>\n' +
                                '   </ARConfig>';

It creates a target.xml when the target.jpg is uploaded. But this file gets overriden when the target.zip file is uploaded. So why create it in the first place?

EDIT:
Ok, after some hacking to allow cylindrical targets I see that it’s difficult because the z axis mapping has to be taken into account. I would like the z axis to be orthogonal to the side of the cylinder and x and y to be the height/width of the cylinder which is probably quite difficult to map into the RealityEditor coordinate system…

I’m not sure I understand what you mean. When you want to change the z-axis of the UI by using the distance to the target do you mean you want to change the z-value or do you actually want to move the z-axis around and change its orientation?

What I actually want to do is the following:

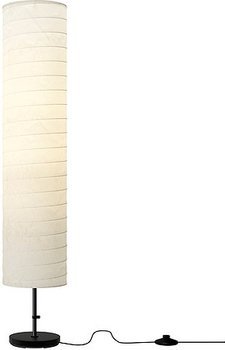

I have a lamp similar to the one below and I want to wrap my marker around it. The UI should appear regardless of the direction from which the IPhone is pointed at the lampshade.

The detection part works. Vuforia is able to detect the target, but because the vuforia z-axis is pointing upwards (see below) and the RealityEditor’s z-axis is orthogonal to the display’s x-y-plane, the WebUI is rendered onto the top of the lamp and not onto the lampshade. This means when you point the IPhone at the lampshade you see the z-x- or z-y-plane of the WebUI. That’s rather flat, because my WebUI doesn’t contain any z-information

Maybe it would work if i flipped the z and y axis of my WebUI…

P.S.
The code part mentioned in my first post still doesn’t seem to make sense

Wow, yes that would be it. Sounds great and I think it would be a nice-to-have feature and give you even more freedom in positioning UI elements.

<?xml version="1.0" encoding="UTF-8"?>
<QCARConfig xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="qcar_config.xsd">
  <Tracking>
    <CylinderTarget name="Light1Nysls91co7bk" sideLength="300.000000"/>
  </Tracking>
</QCARConfig>

To enable it I did a quick and dirty hack in HybridObjectsUtilities.js:

exports.getObjectIdFromTarget = function (folderName, dirnameO) {
    var xmlFile = dirnameO + '/objects/' + folderName + '/target/target.xml';

    if (fs.existsSync(xmlFile)) {
        var resultXML = "";
        xml2js.
            Parser().
            parseString(fs.readFileSync(xmlFile, "utf8"),
            function (err, result) {
                for (var first in result) {
                    if (typeof (result[first].Tracking[0].ImageTarget) !== 'undefined')
                        resultXML = result[first].Tracking[0].ImageTarget[0].$.name;
                    else if (typeof (result[first].Tracking[0].CylinderTarget) !== 'undefined')
                        resultXML = result[first].Tracking[0].CylinderTarget[0].$.name;
                    break;
                }
            });

        return resultXML;
    } else {
        return null;
    }
};

After that it detected the marker and displayed the UI but with the messed up orientation.

I think the hack is a bit ugly because there are other possible types apart from ImageTarget and CylinderTarget. So we would either have to add an if for each of those or do something like result[first].Tracking[0].getChild().$.name; I don’t know if there actually is something like getChild(), but it would be worth finding out, I think.

@valentin I would like to integrate this feature into my editor fork. Which branch will I have to merge? Do I have to wait for the update or can I just merge it and run it right away?

You committed the changes to the server code directly into the master branch and not into the beta_hardwareInteraces branch, right?

Not yet, the settings button of the RealityEditor vanished. Don’t know yet if that is because I made some mistake during merging it into my own code or something else…

I’ll keep you posted.

EDIT:
Got it Somehow one line got messed up during merge.

@valentin when I click “Authoring Position UI” in the preferences I see the new “Reset” Button and another button which I suppose enables the unconstrained editing. But when I click it nothing in the positioning behavior changes. Are there any special gestures or how do you position something?

Ok, it works I had just been too stupid to use it

I thought you could turn the UI with some gesture, but instead you simply touch the UI and turn the IPhone. I think I am too used to manipulating things on the phone with gestures. And well, I expected that you had to directly manipulate the UI to position it but instead you have to “fix” the UI’s position by touching it and move the surrounding “coordinate system” by moving the Phone.

After you have understood that you have to move the Phone to position the UI it’s quite intuitive. But first you have to understand that and I think it is not obvious that you can “lock” the position of the UI by touching it. In the RealityEditor application the camera is kind of used as “glass pane”. When you look at the screen you see the real world behind it. And when I, as a real world person, move my point of view a real world object’s position stays fixed and because I expected the augmented UI elements to behave like real world objects I didn’t even get the idea to move the phone to position the UI Additionally I was used to position the UI element by touching and moving it in some kind from the time before this new feature was added. This new mode sort of reverses the positioning paradigm - instead of moving the UI you now have to move the Phone.

You are right about the gestures. That wouldn’t be intuitive and more complicated. You would have to explain the gestures somewhere. So I think that your solution is quite good but it would be even better if you could immediately understand that you have to move the Phone to position the UI. I have got no idea how to make it more obvious though

Yes a video will do But it would be even better if you could understand it right away without any instructions from outside the actual application.

I’ve got to admit I don’t get this paragraph Are you saying you think the “lock feature” (we really have to give it a name ) is similar to drawing a connection between IOPoints? I don’t see that.

Yes, I agree. This “lock feature” is really cool. Once you have understood it you can do a lot with it. I will experiment with it in the next couple of days and try to use it for my cylindrical lamp shade marker. I’m excited to see if I can get the UI positioned as I wish. I only gave it a quick try today.

Yeah and I think it’s always good to discuss which gestures we have, which gestures we actually need and which gestures are missing or which could be improved or replaced. I think It would be cool to get some feedback from people actually only using the RealityEditor who are not so involved in developing. That could open a new perspective on things.
